Arduino® UNO R4 Minima Online
Original price was: $20.00.$10.00Current price is: $10.00.
Description

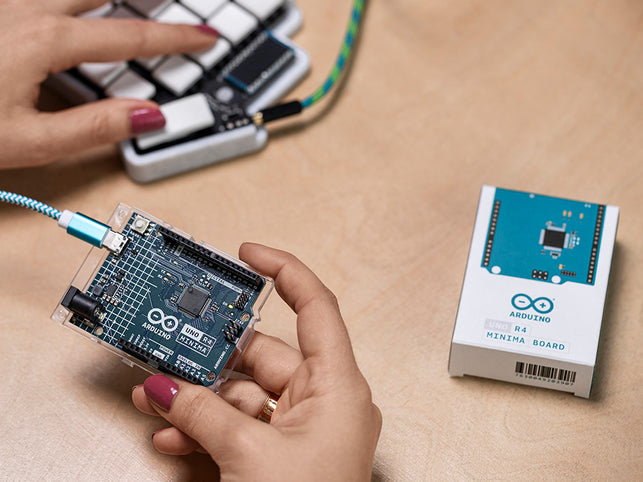

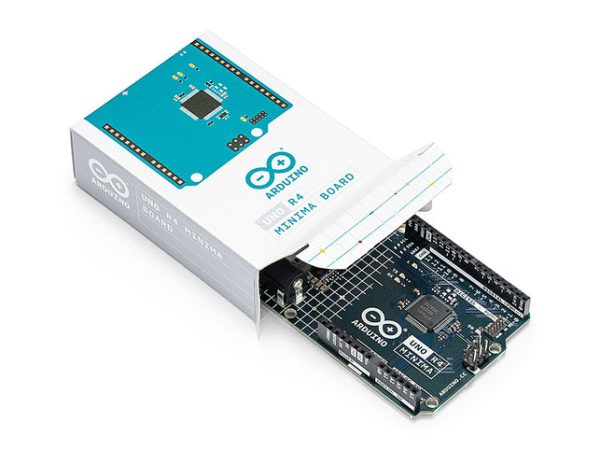

Introducing the Arduino UNO R4 Minima!
This board boasts the RA4M1 microprocessor from Renesas, delivering increased processing power, expanded memory, and additional peripherals. And the best part? It stays true to the reliable UNO form factor and operates at a practical 5 V voltage. Brace yourself for an upgrade like no other with the Arduino UNO R4 Minima! (USB-C Cable sold separately, not included)
Here s what the UNO R4 Minima brings to the table:
- Hardware compatibility with UNO form factor: The UNO R4 Minima maintains the same form factor, pinout, and 5 V operating voltage as its predecessor, the UNO R3. This ensures a seamless transition for existing shields and projects, leveraging the extensive and unique ecosystem already established for the Arduino UNO.
- Expanded memory and faster clock: Prepare for more precise calculations and the ability to handle complex projects with ease. The UNO R4 Minima boasts increased memory and a faster clock speed, empowering you to tackle demanding tasks effortlessly.
- Extra on-board peripherals: The UNO R4 Minima introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP. These additional components provide you with expanded capabilities and flexibility in your designs.
- Extended 24 V tolerance: The UNO R4 Minima now supports a wider input voltage range, allowing power supplies up to 24 V. This enables seamless integration with motors, LED strips, and other actuators, simplifying your projects by utilizing a single power source.
- SWD connector: Debugging is a critical aspect of any project. Simply connect an external debugger to the UNO R4 Minima and effortlessly monitor the inner workings of your system. Stay in control and gain valuable insights.
- HID support: The UNO R4 Minima comes with built-in HID (Human Interface Device) support, enabling it to simulate a mouse or keyboard when connected to a computer via a USB cable. This convenient feature makes it a breeze to send keystrokes and mouse movements to a computer, enhancing usability and functionality.
-
- Microcontroller: Renesas RA4M1 (Arm® Cortex®-M4)
- USB: USB-C® Programming Port
- Pins: Digital I O Pins 14
- Pins: Analog Input Pins 6
- DAC: 1
- PWM Pins: 6
- Communication UART: Yes, 4x
- I2C: Yes, 1x
- SPI: Yes, 1x
- CAN: Yes 1 CAN Bus
- Power Circuit Operating Voltage: 5 V
- Input Voltage (VIN): 6-24 V
- DC Current Per I O Pin: 8 mA
- Clock Speed Main Core: 48 MHz
- Memory: RA4M1 256 kB Flash, 32 kB RAM
- Dimensions Width: 68.85 mm
- Length: 53.34 mm
- USB-C Cable sold separately, not included
The Arduino UNO R4 Minima was specifically designed to ensure compatibility with previous shields and compatible hardware developed for the Arduino UNO R3. The UNO R4 Minima maintains the same mechanical and electrical compatibility, allowing you to seamlessly use your existing shields and hardware with the new board. This makes it easy to upgrade to the UNO R4 Minima without the need for significant changes or adaptations to your projects.
If your sketch was developed using the Arduino API you can still use it. In case you are using instructions only available for the AVR architecture, some changes need to be made to ensure compatibility. Some UNO R3 libraries use instructions of the AVR architecture that are not compatible with the architecture of the UNO R4 Minima, however there are libraries that have already been ported as part of our early adopters program or are based on the Arduino API.
Additional information
Title Default Title
Get ready to unlock a world of possibilities with the Arduino UNO R4 Minima. Its exceptional features and enhanced capabilities make it the perfect companion for your innovative ventures.
If you are looking to upgrade your project with wireless connectivity or want to start exploring the world of IoT, you can check the Arduino UNO R4 WiFi.
Overview
Enhanced and improved, the Arduino UNO R4 Minima is armed with a powerful 32-bit microcontroller courtesy of Renesas. Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals. The best part? Compatibility with existing shields and accessories remains intact, and there s no need to make any changes to the standard form factor or 5 V operating voltage.
Joining the Arduino ecosystem, the UNO R4 is a trusty addition suitable for both beginners and seasoned electronics enthusiasts. Whether you re just starting out or looking to push the boundaries of your projects, this robust board delivers reliable performance every time.
Arduino is an amazing tool for physical computing — it s an open source microcontroller board, plus a free software development environment. Use it to make cool interactive objects that can sense inputs from switches, sensors, and computers — and then control motors, lights, and other physical outputs in the real world.
Tech specs
